Analytic Systems AC Charger 2-Bank, 41A, 32V Out, 110/220 In

AC Charger 2-Bank, 41A, 32V Out, 110/220 In

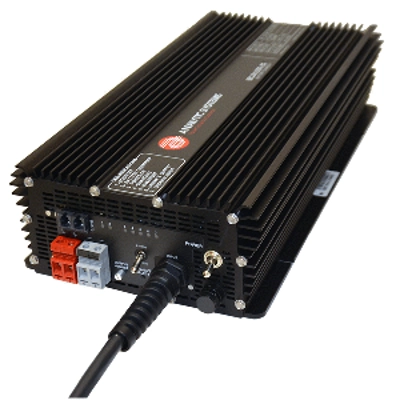

The BCA1550 Series battery charger provides up to 1000 watts of charging power to a one or two-bank battery system at 12, 24, 32, 36, 48, or 72 (Rail) VDC from an 85 – 264 VAC source.

The BCA1550 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48, or 72 (Rail) VDC. The 1550 family provides up to 1500 watts of precision power (the 1050 family supplies up to 1000 watts). The 1550 and 1050 families are identical to their previous models (1505 and 1005, respectively) in form, fit, and function as a direct drop-in replacement.

Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 – 264 VAC at 50 or 60Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input and output filtering reduce EMI to extremely low levels to prevent interference with nearby sensitive electronics. These units are constructed from heavy-duty extruded aluminum chassis and aluminum ventilated front and rear panels with thermostatically controlled cooling fans and all stainless steel fasteners for rugged duty. Reliability features include LED status indicators, input circuit breaker, thermal shutdown, current limiting, reverse polarity connection protection, and output short circuit shutdown with automatic recovery.

Features:

• Power Factor Corrected AC Input
• Fast and accurate charging
• Can function as a power supply
• Visual indicators for operation and errors
• Five-year parts and labor warranty

Specifications:

• Function: Battery Charger
• Conversion: AC to DC
• Power Level: 1500
• Input Volts: 85 – 264 VAC, 110 VAC, 110/220 VAC, 220 VAC
• Power Factor Corrected (PFC): Yes
• Output Volts: 32 VDC
• Output Amps Continuous: 40
• Input/Output Isolation: Yes
• Technology: Analog
• Charging Stages: 3
• Temperature Compensation: Yes
• Equalize: Yes
• Battery Banks: 2
• Option Codes: 'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant
